tinyPHOON A NEW LEGEND TO COME

The developement of this very light two-seat training aircraft is on its way... The preliminary stage is completed for a few years now. The design has been reviewed by several well known airplanes designers, among them LeRoy LoPresti, Darrol Stinton, Michel Colomban, Christophe Robin... The practical work has begun and is on its way to produce a magnificent sportplane. Below, some of the main figures:

• Wing Span: 6.4 m (21 ft)
• Length Overall: 5.3 m (17.4 ft)
• Two-seat in tandem for best performance
• Turboprop or turboshaft engine of 75 kW (100 HP). Piston engine also possible
• Light weight with a MTOM of 450 kg (992 lb)
• Load factors +6, -4 g
• Fuel capacity 70 kg (155 lb)
• Retractable landing gear
• and much more...

• ROC 8.4 m/s (1650 ft/min)
• Max cruise speed 290 km/h (160 kts)
• 75% cruise speed 265 km/h (145 kts)
• T/O run 100 m (110 yards)
• Vx 110 km/h (60 kts)
• Vy 150 (80 kts)
• Vs 97 km/h (52 kts) with 10°flaps

Some pictures of the aeroplane in progress...

In this picture, you can see the self produced mock-up and master mold of the very light high performance aircraft for a two persons accomodation in tandem. It is called tinyPHOON as a contraction for Typhoon and tiny. The task was to design it from scratch, from the aerodynamical view point to the detail design with stress analysis.

TEC-95 ...the ultimate turboprop engine conversion

High power at high altitudes, high power to mass ratio, auto-restart at 50% power, relibility thanks to the free turbine concept, designed just like a real aviation turbine -not like an APU-, advanced technology to the amateur builder, featuring Finite Element Analyzed parts, optimised designs, and many more advantages for this very unique customized engine... Below, some of the main figures:

• Power range: 75 kW (100 hp)
• Mass: 55 kg m (122 lb)
• RPM: 3200
• consumption: 8 to 14 gph JET A1, depending on power setting
• Prop flange: Dia 138 mm, with 6 9.5 mm holes at Radius 55.5 mm
• Dimensions: 78x40x43 cm (LxWxH)

• PropLing hub with 3 warp or Power Fin blades
• Quantum III (BD-Micro Technologies)
• Warp Drive VRS
• mt-popeller MTV-10-B or D
• much more...

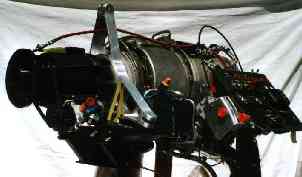

Some pictures of the unique turboprop engine...

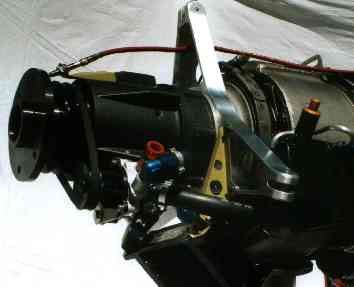

	This is a close up view on the front engine part, with the oil cooling system, oil tank, oil circulation pump, oil cooler and also the so-called lambda fitting, which has been analyzed by Finite Element Method.

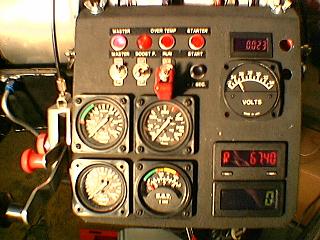

	This a view of the Turboprop engine TEC-95 experimental instrument panel, with provision for an additional instrument. Now it has the throttle and propeller controls and a stop-watch. All parameters are measured while running.
	This a view of the Turboprop engine exhaust stack or "moustache" which has been optimized to produce some 10 to 15 % of additional thrust at take-off or initial climb. It is made out of special high temperature stainless steel.
